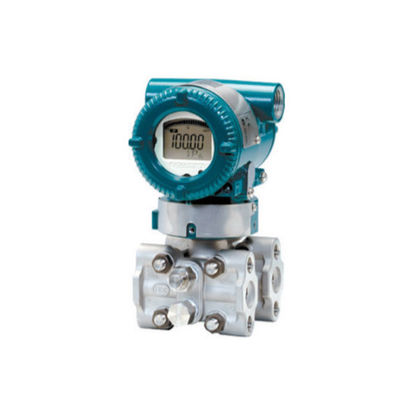

EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter

EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter

Description:

Manufacturer : Yokogawa

Model: EJX110A-FMS5G-914DJ/KS26/M01/T13/D3

Model : EJX110A - Differential pressure transmitter

Output signal : F - Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C25T02-01EN)

Measurement span (capsule) : M - 0.5 to 100 kPa (2 to 400 inH2O)

Process connections : 5 - without process connector (1/4 NPT female on the cover flanges)

Bolts and nuts material : G - 316L SST

Installation : 9 - Horizontal piping and left side high pressure

Amplifier housing : 1 - Cast aluminum alloy

Integral indicator : D - Digital indicator

Mounting bracket : J - 316 SST 2-inch pipe mounting, flat type (for horizontal piping)

Dimensions (HxWxD), approx : 17.5cm x 11cm x 9.5cm

Shipping Weight : 8Kg
0 = Always 0
Shipping weight : 7KG

Additional Informaiton:

The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.The EJX110A is the traditional-mount Differential Pressure Transmitter in the series.

EJX110A features include:

± 0.04% Accuracy (0.025% Accuracy option available)
± 0.1% per 15 years Stability
90 ms Response Time
3,600 psi MWP
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)
