Produktdetails:
Zahlung und Versand AGB:
|
| Material: | PC/ABS-housing | Eigenschaft: | Übermittler 4-wire |
|---|---|---|---|
| Messendes Prinzip: | Sensor ORP/Redox- | Anwendung: | Wasser, Abwasser, Prozess |
| Maß: | 247x170x115mm | Temperaturfühler: | Anzeige und Stromabgabe |
| Input: | Ein-Kanal-Übermittler | Ertrag: | 0/4-20mA, Hirsch, Profibus. |
| Markieren: | Instrument CPM253 E&H,Instrument 4mA E&H,Übermittler pH ORP |
||

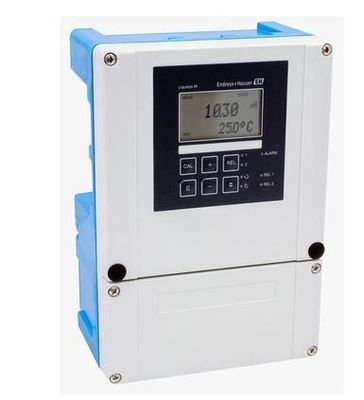

E+H PH/ORP transmitter Liquisys CPM253 for all analog and digital Memosens sensors
Description:
Manufacturer : Endress+Hauser
Product No. : CPM253-MR0005
Product type : pH/ORP transmitter Liquisys CPM223
Transmitter for analog and digital glass and ISFET sensors
Dimensions
Panel mounted instrument: IP 54 (front), IP 30 (housing)
Field instrument: IP 65 / tightness acc. to NEMA 4X
Panel mounted instrument: 96 x 96 x 145 mm (3.78 x 3.78 x 5.71 inches)
Mounting depth: approx. 165 mm (6.50")
Field instrument: 247 x 170 x 115 mm (9.72 x 6.69 x 4.53 inches)
Weight
Panel mounted instrument: max. 0.7 kg (1.5 lb)
Field instrument: max. 2.3 kg (5.1 lb)
Material
Housing of panel mounted instrument: Polycarbonate
Field housing: ABS PC FR
Front membrane: Polyester, UV-resistant
Terminals
Cross section 2.5 mm2 (14 AWG)
Shipping Weight : 3.3 Kg
Benefits
More operational safety: Continuous process check system, customized alarm configuration, proven Memosens interface for reliable sensor connection.
Reliable self-monitoring: Sensor check system for pH glass and reference, calibration plausibility check.
Easy to operate and service: Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, direct access for manual contact control.
Reduced maintenance: Automatic cleaning function (with Chemoclean) triggered by alarm or limit switch.
Fit for every application: Numerous extensions, such as P(ID) controller, timer, etc., allow for flexible adaption to all processes.
Field of application
The Liquisys CPM253 transmitter works with all pH/ORP glass and ISFET sensors in non-hazardous areas, for example in these industries and their utilities:
Chemicals
Food & Beverages
Power & Energy
Water & Wastewater
Primaries & Metal
Liquisys CPM253 features the following protocols and interfaces:
0/4...20 mA
HART
PROFIBUS DP
PROFIBUS PA
