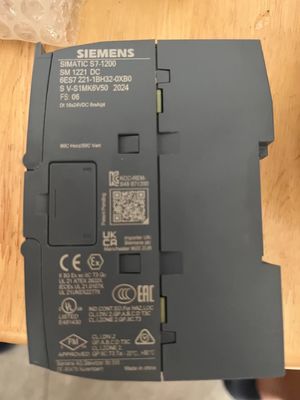

Name: 6ES7221-1BH32-0XB0 Input module, SIMATIC S7, digital, 16 input in stock
Brand: GREAT SYSTEM INDUSTRY CO. LTD
SKU: 6ES7221-1BH32-0XB0
Price: 363.02 USD
Availability: InStock

MOQ:	1
Preis:	Verhandlungsfähig
Standardverpackung:	KARTON
Lieferfrist:	Verhandelbar
Zahlungsmethode:	T/t
Lieferkapazität:	Vorrat 500+pcs+on

Detail-Informationen

Beschreibung des Produkts

Einzelheiten

Herkunftsort

Deutschland

Markenname

Siemens

Zertifizierung

rohs

Modellnummer

6ES7221-1BH32-0XB0

Messbereich - Druck:

-10 .... 3000bar

Herkunft:

Deutschland

Vorlaufzeit:

6-8 Wochen

Garantie:

1year

Waren:

Brandneu und originell

Farbe:

Blau

Name:

6ES7221

Nachfolger:

6ES7221-1BH32-0XB0

Hervorheben:

SIMATIC S7 digital input module

16 input SIMATIC S7 module

SIEMENS digital input module with warranty

Beschreibung des Produkts

6ES7221-1BH32-0XB0 Input module, SIMATIC S7, digital, 16 input in stock

Technical data

SIMATIC S7-1200, Digital input SM 1221,16 digital input, 24V DC, infusion current/pull current

General Information

Product Type Label SM 1221, DI 16x24 VDC

power supply voltage

Rated value (DC) 24 V

Allowable range, lower limit (DC) 20.4V

The upper limit (DC) is 28.8V

input current

From the backplane bus DC 5 V, maximum 130 mA

Digital input terminal

● From load voltage L+(no-load), maximum 4 mA; per channel

Output voltage/heading

Measure the power supply voltage/title of the converter

Product Function/Measurement of Inverter Power Supply Voltage

power loss

Power loss, typical value 2.5W

digital input

Quantity input terminal quantity 16

● In component 4

The input characteristics comply with IEC 61131, type 1 is

The number of inputs that can be controlled simultaneously

All installation locations

-Up to 40 ℃, up to 16 ℃

Horizontal installation position

-Up to 40 ℃, up to 16 ℃

-Maximum 50 ℃, maximum 16 ℃

Vertical installation position

-Up to 40 ℃, up to 16 ℃

input voltage

Rated value (DC) 24 V

DC 5 V, signal "0" 1 mA

For signal "1" at 15 V DC, when it is 2.5 mA

input current

For signal "0", the maximum (allowable closed-circuit current) is 1 mA

For signal "1", the minimum value is 2.5mA

For signal "1", the typical value is 4 mA

Input delay (when the input voltage is rated)

For standard inputs

-Parameterization is; You can choose from four groups: 0.2ms, 0.4ms, 0.8ms, 1.6ms, 3.2ms, 6.4ms, and 12.8ms

Used for alarm input

-Parameterization is

conductor length

The required front plug is

Mechanical/Material

Shell material (front)

Plastic is

size

Width 45 millimeters

Height of 100mm

Depth 75mm

weight

Weight, approximately 210 grams

6ES7221-1BH32-0XB0 Input module, SIMATIC S7, digital, 16 input in stock 0

Model	SM 1221 DI 8 x 24 V DC	SM 1221 DI 16 x 24 V DC
Article number	6ES7221-1BF32-0XB0	6ES7221-1BH32-0XB0
Dimensions W x H x D (mm)	45 x 100 x 75
Weight	170 grams	210 grams
Power dissipation	1.5 W	2.5 W
Current consumption (SM Bus)	105 mA	130 mA
Current consumption (24 V DC)	4 mA / input used
