Produktdetails:
Zahlung und Versand AGB:
|
| Ursprung: | Singapur | Modell: | 3051CG2A22A1AM5B4 |
|---|---|---|---|
| Energie: | 4-20 MA: 10.5-55 v-DC ohne Last geringe Energie: 6-12 v-DC ohne Last | Materialien: | Sensor machte Teile nass: SST, Hastelloy, Monel, Tantal, Gold überzogene SS, Gold überzog Monel |
| Montage: | Koplanare und traditionelle Flansche und Adapter: Kadmium und Nickel-überzogenes CS, 316 SST | Maßabsolutdruck: | bis 4000 psia (Stange 275,8). |
| Maßdifferenzial und Manometerdruck: | bis 2000 P/in (Stange 137,9) | Ertrag: | 4-20ma, mit digitalem Signal der HIRSCH-Vereinbarung |
| Membranmaterial: | Edelstahl 316L | ||
| Markieren: | Messgerät Emerson Rosemount Pressure Transmitter,3051CG Emerson Rosemount Pressure Transmitter,10.5V |
||

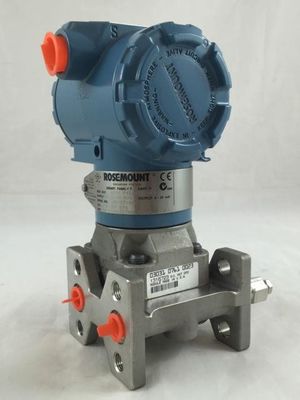

Messgerät-Druckgeber 3051CG2A22A1AM5B4 Emerson Rosemounts 3051CG
Hersteller: Rosemount
Produkt nein: 3051CG2A22A1AM5B4
Produktart: koplanarer Druckgeber 3051C
Maßart: G = Messgerät
Druckstrecke: 2 = – 250 bis 250 inH2O (– 621,60 bis 621,60 mbar)
Übermittlerertrag: = 4-20 MA mit dem digitalen Signal basiert auf HART®-Protokoll
Ausführungsmaterialien: 2 = koplanare Prozessflanschart, SST-Flanschmaterial, SST-Abfluss/Entlüftung
Isolierung der Membran: 2 = 316L SST
O-Ring: = Glas-gefülltes PTFE
Sensor-Fülleflüssigkeit: 1 = Silikon
Unterkunft des Materials: B = Aluminium, Kabeleinführungsgröße 1,5 M20 x
Schienenplatte: B4 = koplanare Flanschklammer, alle SST, 2 Zoll. Rohr und Platte
Anzeigen- und Schnittstellenwahlen: M5 = LCD-Anzeige
Flanschadapter: DF = ½ – 14 NPT-Flanschadapter
Gewicht: 3 Kilogramm
Versandgewicht: 4 Kilogramm
· Sicherheit bestätigt zu Iec 61508
· Wahl des statischen Drucks bis 6.092 P/in (Stange 420)
· Prozessdruck-und Sensor-Temperatur-Alarme
· Konfigurierbare Warnungs- und Sättigungswerte des Benutzers
· Justierbare Niederflussabkürzung
Differenzdruckgeber 3051CD
Druckgeber des Messgeräts 3051CG
Übermittler des Absolutdrucks 3051CA
| Druck-Strecke | ||||||
| Roemount 3051CD | Rosemount 3051CG | Rosemount 3051CA | ||||
| 0 | -3----3inH2O/0.1inH2O | Nicht anwesend | Nicht anwesend | |||
| 1 | -25---25inH2O/0.5inH2O | -25-25inH2O/0.5inH2O | 0-30psia/0.3psia | |||
| 2 | -250-250inH2O/2.5inH2O | -250-250inH2O/2.5inH2O | 0-150psia/1.5psia | |||
| 3 | -1000-1000inH2O/10inH2O | -407-1000inH2O/10inH2O | 0-800psia/8psia | |||
| 4 | -300-300psi/3psi | -14.7-300psi/3psi | 0-4000psia/40psia | |||
| 5 | -2000-2000psi/20psi | -14.7-2000psi/20psi | Nicht anwesend | |||
| Ertrag | ||||||
| 4-20ma, mit digitalem Signal der HIRSCH-Vereinbarung | ||||||
| M | 1-5Vdc, mit digitalem Signal der HIRSCH-Vereinbarung | |||||
| F | FF-fieldbus | |||||
| W | profibus | |||||
| Strukturteilmaterial | ||||||
| Prozessflanschart | Flanschmaterial | Flüssiges/GasAuslassventil | Flanschverbindungsmaterial | |||
| 5 | coplane | Galvanisieren Sie Kohlenstoffstahl | Edelstahl | Galvanisieren Sie Kohlenstoffstahl | ||
| 2 | Coplane | Edelstahl | Edelstahl | Edelstahl | ||
| 3 | coplane | Hastelloy C | Hastelloy C | Hastelloy C | ||
| 4 | Coplane | Monel | Monel | Monel | ||
| 8 | coplane | Galvanisieren Sie Kohlenstoffstahl | Hastelloy C | Galvanisieren Sie Kohlenstoffstahl | ||
| 7 | coplane | Edelstahl | Hastelloy C | Edelstahl | ||
| 0 | Ersetzen Sie Flansch | |||||
| Membranmaterial | ||||||
| 2 | Edelstahl 316L | |||||
| 3 | Hastelloy C | |||||
| 4 | Monel | |||||
| 5 | Tantal | |||||
| 6 | Gold überzog monel | |||||
| 7 | Gold überzogener Edelstahl | |||||
| 3051CG1A02A1AB1H2L4M5, | 3051CD0A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB1H2L4M5, | 3051CD1A02A1AB3H2L4M5E5, |
| 3051CG3A02A1AB1H2L4M5, | 3051CD2A02A1AB3H2L4M5E5, |
| 3051CG4A02A1AB1H2L4M5, | 3051CD3A02A1AB3H2L4M5E5, |
| 3051CG5A02A1AB1H2L4M5, | 3051CD4A02A1AB3H2L4M5E5, |
| 051CG1A02A1AB3H2L4M5, | 3051CD5A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB3H2L4M5, | 3051CD0A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB3H2L4M5, | 3051CD1A02A1AB3H2L4M5I5, |
| 3051CG4A02A1AB3H2L4M5, | 3051CD2A02A1AB3H2L4M5I5, |
| 3051CG5A02A1AB3H2L4M5, | 3051CD3A02A1AB3H2L4M5I5, |
| 3051CG1A02A1AB1H2L4M5K5, | 3051CD4A02A1AB3H2L4M5I5, |
| 3051CG2A02A1AB1H2L4M5K5, | 3051CD5A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB1H2L4M5K5 | 3051CD1A22A1AB4M5, |
| 3051CG4A02A1AB1H2L4M5K5, | 3051CD2A22A1AB4M5, |
| 3051CG5A02A1AB1H2L4M5K5 | 3051CD3A22A1AB4M5, |
| 3051CG1A02A1AB1H2L4M5E5, | 3051CD4A22A1AB4M5, |
| 3051CG2A02A1AB1H2L4M5E5, | 3051CD5A22A1AB4M5, |
| 3051CG3A02A1AB1H2L4M5E5, | 3051CD1A22A1AB4M5DF, |
| 3051CG4A02A1AB1H2L4M5E5, | 3051CD2A22A1AB4M5DF, |
| 3051CG5A02A1AB1H2L4M5E5, | 3051CD3A22A1AB4M5DF, |
| 3051CG1A02A1AB1H2L4M5I5, | 3051CD4A22A1AB4M5DF, |
| 3051CG2A02A1AB1H2L4M5I5, | 3051CD5A22A1AB4M5DF, |
| 3051CG3A02A1AB1H2L4M5I5, | 3051CD1A22A1AB4M5K5, |
| 3051CG4A02A1AB1H2L4M5I5, | 3051CD2A22A1AB4M5K5, |
| 3051CG5A02A1AB1H2L4M5I5, | 3051CD3A22A1AB4M5K5, |
| 3051CG1A02A1AB3H2L4M5K5, | 3051CD4A22A1AB4M5K5, |
| 3051CG2A02A1AB3H2L4M5K5, | 3051CD5A22A1AB4M5K5, |
| 3051CG3A02A1AB3H2L4M5K5, | 3051CD1A22A1AB4M5E5, |
| 3051CG4A02A1AB3H2L4M5K5, | 3051CD2A22A1AB4M5E5, |
| 3051CG5A02A1AB3H2L4M5K5, | 3051CD3A22A1AB4M5E5, |
| 3051CG1A02A1AB3H2L4M5E5, | 3051CD4A22A1AB4M5E5, |
| 3051CG2A02A1AB3H2L4M5E5, | 3051CD5A22A1AB4M5E5, |
| 3051CG3A02A1AB3H2L4M5E5, | 3051CD1A22A1AB4M5I5, |
| 3051CG4A02A1AB3H2L4M5E5, | 3051CD2A22A1AB4M5I5, |
| 3051CG5A02A1AB3H2L4M5E5, | 3051CD3A22A1AB4M5I5, |
| 3051CG1A02A1AB3H2L4M5I5, | 3051CD4A22A1AB4M5I5, |
| 3051CG2A02A1AB3H2L4M5I5, | 3051CD5A22A1AB4M5I5, |
| 3051CG3A02A1AB3H2L4M5I5, | 3051CA1A02A1AB1H2L4M5, |
| 3051CG4A02A1AB3H2L4M5I5, | 3051CA2A02A1AB1H2L4M5, |
| 3051CG5A02A1AB3H2L4M5I5, | 3051CA3A02A1AB1H2L4M5, |
| 3051CG1A22A1AB4M5, | 3051CA4A02A1AB1H2L4M5, |
| 3051CG2A22A1AB4M5, | 3051CA5A02A1AB1H2L4M5, |
| 3051CG3A22A1AB4M5, | 3051CA1A02A1AB3H2L4M5, |
| 3051CG4A22A1AB4M5, | 3051CA2A02A1AB3H2L4M5, |
| 3051CG5A22A1AB4M5, | 3051CA3A02A1AB3H2L4M5, |
| 3051CG1A22A1AB4M5DF, | 3051CA4A02A1AB3H2L4M5, |
| 3051CG2A22A1AB4M5DF, | 3051CA5A02A1AB3H2L4M5, |
| 3051CG3A22A1AB4M5DF, | 3051CA1A02A1AB1H2L4M5K5, |
| 3051CG4A22A1AB4M5DF, | 3051CA2A02A1AB1H2L4M5K5, |
| 3051CG5A22A1AB4M5DF | 3051CA3A02A1AB1H2L4M5K5, |
| 3051CG1A22A1AB4M5K5, | 3051CA4A02A1AB1H2L4M5K5, |
| 3051CG2A22A1AB4M5K5, | 3051CA5A02A1AB1H2L4M5K5, |
| 3051CG3A22A1AB4M5K5 | 3051CA1A02A1AB1H2L4M5E5, |
| 3051CG4A22A1AB4M5K5, | 3051CA2A02A1AB1H2L4M5E5, |
| 3051CG5A22A1AB4M5K5, | 3051CA3A02A1AB1H2L4M5E5, |
| 3051CG1A22A1AB4M5E5 | 3051CA4A02A1AB1H2L4M5E5, |
| 3051CG2A22A1AB4M5E5, | 3051CA5A02A1AB1H2L4M5E5, |
| 3051CG3A22A1AB4M5E5, | 3051CA1A02A1AB1H2L4M5I5, |
| 3051CG4A22A1AB4M5E5 | 3051CA2A02A1AB1H2L4M5I5, |
| 3051CG5A22A1AB4M5E5, | 3051CA3A02A1AB1H2L4M5I5, |
| 3051CG1A22A1AB4M5I5, | 3051CA4A02A1AB1H2L4M5I5, |
| 3051CG2A22A1AB4M5I5 | 3051CA5A02A1AB1H2L4M5I5, |
| 3051CG3A22A1AB4M5I5, | 3051CA1A02A1AB3H2L4M5K5, |
| 3051CG4A22A1AB4M5I5, | 3051CA2A02A1AB3H2L4M5K5, |
| 3051CG5A22A1AB4M5I5 | 3051CA3A02A1AB3H2L4M5K5, |
| 3051CD0A02A1AB1H2L4M5, | 3051CA4A02A1AB3H2L4M5K5, |
| 3051CD1A02A1AB1H2L4M5, | 3051CA5A02A1AB3H2L4M5K5, |
| 3051CD2A02A1AB1H2L4M5 | 3051CA1A02A1AB3H2L4M5E5, |
| 3051CD3A02A1AB1H2L4M5, | 3051CA2A02A1AB3H2L4M5E5, |
| 3051CD4A02A1AB1H2L4M5, | 3051CA3A02A1AB3H2L4M5E5, |
| 3051CD5A02A1AB1H2L4M5 | 3051CA4A02A1AB3H2L4M5E5, |
| 3051CD0A02A1AB3H2L4M5, | 3051CA5A02A1AB3H2L4M5E5, |
| 3051CD1A02A1AB3H2L4M5, | 3051CA1A02A1AB3H2L4M5I5, |
| 3051CD2A02A1AB3H2L4M5 | 3051CA2A02A1AB3H2L4M5I5, |
| 3051CD3A02A1AB3H2L4M5, | 3051CA3A02A1AB3H2L4M5I5, |
| 3051CD4A02A1AB3H2L4M5, | 3051CA4A02A1AB3H2L4M5I5, |
| 3051CD5A02A1AB3H2L4M5 | 3051CA5A02A1AB3H2L4M5I5, |
| 3051CD0A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5, |
| 3051CD1A02A1AB1H2L4M5K5, | 3051CA2A22A1AB4M5, |
| 3051CD2A02A1AB1H2L4M5K5, | 3051CA3A22A1AB4M5, |
| 3051CD3A02A1AB1H2L4M5K5, | 3051CA4A22A1AB4M5, |
| 3051CD4A02A1AB1H2L4M5K5, | 3051CA5A22A1AB4M5, |
| 3051CD5A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5DF, |
| 3051CD0A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5DF, |
| 3051CD1A02A1AB1H2L4M5E5, | 3051CA3A22A1AB4M5DF, |
| 3051CD2A02A1AB1H2L4M5E5, | 3051CA4A22A1AB4M5DF, |
| 3051CD3A02A1AB1H2L4M5E5, | 3051CA5A22A1AB4M5DF, |
| 3051CD4A02A1AB1H2L4M5E5, | 3051CA1A22A1AB4M5K5, |
| 3051CD5A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5K5, |
| 3051CD0A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5K5, |
| 3051CD1A02A1AB1H2L4M5I5, | 3051CA4A22A1AB4M5K5, |
| 3051CD2A02A1AB1H2L4M5I5, | 3051CA5A22A1AB4M5K5, |
| 3051CD3A02A1AB1H2L4M5I5, | 3051CA1A22A1AB4M5E5, |
| 3051CD4A02A1AB1H2L4M5I5, | 3051CA2A22A1AB4M5E5, |
| 3051CD5A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5E5, |
| 3051CD0A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5E5, |
| 3051CD1A02A1AB3H2L4M5K5, | 3051CA5A22A1AB4M5E5, |
| 3051CD2A02A1AB3H2L4M5K5, | 3051CA1A22A1AB4M5I5, |
| 3051CD3A02A1AB3H2L4M5K5, | 3051CA2A22A1AB4M5I5, |
| 3051CD4A02A1AB3H2L4M5K5, | 3051CA3A22A1AB4M5I5, |
| 3051CD5A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5I5, |
