| Ursprung: | Singapur | Modell: | 3051CG1A22A1AM5Q4 |
|---|---|---|---|
| Energie: | 4-20 MA: 10.5-55 v-DC ohne Last geringe Energie: 6-12 v-DC ohne Last | Materialien: | Sensor machte Teile nass: SST, Hastelloy, Monel, Tantal, Gold überzogene SS, Gold überzog Monel |
| Montage: | Koplanare und traditionelle Flansche und Adapter: Kadmium und Nickel-überzogenes CS, 316 SST | Maßabsolutdruck: | bis 4000 psia (Stange 275,8). |
| Maßdifferenzial und Manometerdruck: | bis 2000 P/in (Stange 137,9) | Ertrag: | 4-20ma, mit digitalem Signal der HIRSCH-Vereinbarung |
| Membranmaterial: | Edelstahl 316L | ||
| Markieren: | 10.5V Emerson Rosemount Pressure Transmitter,4ma Emerson Rosemount Pressure Transmitter,Druckgeber des Messgerät-3051CG |
||

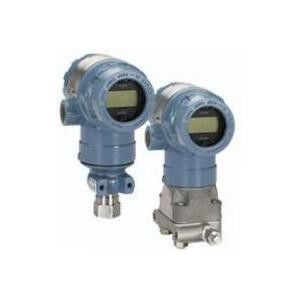

Messgerät-Druckgeber 3051CG1A22A1AM5Q4 Emerson Rosemounts 3051CG
Beschreibung:
Hersteller: Rosemount
3051CG1A22A1AM5Q4
Druckgeber 3051C-Coplanar
G-Maß-Art: Messgerät
1-Pressure erstreckt sich (Strecke/Min. Span): – 25 bis 25 inH2O/0.5 inH2O
(– 62,1 bis 62,2 mbar/1,2
mbar)
Ein-Übermittlerertrag: -4-20 MA mit dem digitalen Signal basiert auf HART®-Protokoll
Membran 2-Isolating: 316L SST
A - O-Ring (Standard): Glas-gefülltes PTFE
1- Sensor-Fülle-Flüssigkeit: Silikon
A - Unterkunft des Materials: Polyurethan-bedecktes Aluminium
Kabeleinführungs-Größe: ½ – 14 NPT
M5 - Darstellungsart: Lcd-Anzeige für Aluminiumwohnung
Addieren Sie Übermittlergewichte lbs (Kilogramm): 0,5 (0,2)
Gewichte des Übermittlers 3051C ohne Wahlen lbs (Kilogramm): 6,0 (2,7)
Gesamtgewicht: 4 Kilogramm
Versandgewicht: 6 Kilogramm
Zusätzliche Information:
Die Ertragwahlen, die für den intelligenten Druckgeber Rosemount 3051C verfügbar sind, umfassen 4-20mA oder 1-5VDC mit HIRSCH-Protokoll, Profibus oder GRUNDLAGE fieldbus. Der intelligente Druckgeber Rosemount 3051C bietet so viele Wahlen an, dass sie für jede mögliche Anwendung konfiguriert sein kann.
Eigenschaften
Sicherheit bestätigt zu Iec 61508
Wahl des statischen Drucks bis 6.092 P/in (Stange 420)
Prozessdruck-und Sensor-Temperatur-Alarme
Konfigurierbare Warnungs- und Sättigungswerte des Benutzers
Justierbare Niederflussabkürzung
Spezifikationen des Messgerät-Druckgebers Rosemount 3051CG
Differenzdruckgeber 3051CD
Druckgeber des Messgeräts 3051CG
Übermittler des Absolutdrucks 3051CA
Spezifikation:
| Druck-Strecke | ||||||
| Roemount 3051CD | Rosemount 3051CG | Rosemount 3051CA | ||||
| 0 | -3----3inH2O/0.1inH2O | Nicht anwesend | Nicht anwesend | |||
| 1 | -25---25inH2O/0.5inH2O | -25-25inH2O/0.5inH2O | 0-30psia/0.3psia | |||
| 2 | -250-250inH2O/2.5inH2O | -250-250inH2O/2.5inH2O | 0-150psia/1.5psia | |||
| 3 | -1000-1000inH2O/10inH2O | -407-1000inH2O/10inH2O | 0-800psia/8psia | |||
| 4 | -300-300psi/3psi | -14.7-300psi/3psi | 0-4000psia/40psia | |||
| 5 | -2000-2000psi/20psi | -14.7-2000psi/20psi | Nicht anwesend | |||
| Ertrag | ||||||
| 4-20ma, mit digitalem Signal der HIRSCH-Vereinbarung | ||||||
| M | 1-5Vdc, mit digitalem Signal der HIRSCH-Vereinbarung | |||||
| F | FF-fieldbus | |||||
| W | profibus | |||||
| Strukturteilmaterial | ||||||
| Prozessflanschart | Flanschmaterial | Flüssiges/GasAuslassventil | Flanschverbindungsmaterial | |||
| 5 | coplane | Galvanisieren Sie Kohlenstoffstahl | Edelstahl | Galvanisieren Sie Kohlenstoffstahl | ||
| 2 | Coplane | Edelstahl | Edelstahl | Edelstahl | ||
| 3 | coplane | Hastelloy C | Hastelloy C | Hastelloy C | ||
| 4 | Coplane | Monel | Monel | Monel | ||
| 8 | coplane | Galvanisieren Sie Kohlenstoffstahl | Hastelloy C | Galvanisieren Sie Kohlenstoffstahl | ||
| 7 | coplane | Edelstahl | Hastelloy C | Edelstahl | ||
| 0 | Ersetzen Sie Flansch | |||||
| Membranmaterial | ||||||
| 2 | Edelstahl 316L | |||||
| 3 | Hastelloy C | |||||
| 4 | Monel | |||||
| 5 | Tantal | |||||
| 6 | Gold überzog monel | |||||
| 7 | Gold überzogener Edelstahl | |||||
Allgemeine Modelle:
| 3051CG1A02A1AB1H2L4M5, | 3051CD0A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB1H2L4M5, | 3051CD1A02A1AB3H2L4M5E5, |
| 3051CG3A02A1AB1H2L4M5, | 3051CD2A02A1AB3H2L4M5E5, |
| 3051CG4A02A1AB1H2L4M5, | 3051CD3A02A1AB3H2L4M5E5, |
| 3051CG5A02A1AB1H2L4M5, | 3051CD4A02A1AB3H2L4M5E5, |
| 051CG1A02A1AB3H2L4M5, | 3051CD5A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB3H2L4M5, | 3051CD0A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB3H2L4M5, | 3051CD1A02A1AB3H2L4M5I5, |
| 3051CG4A02A1AB3H2L4M5, | 3051CD2A02A1AB3H2L4M5I5, |
| 3051CG5A02A1AB3H2L4M5, | 3051CD3A02A1AB3H2L4M5I5, |
| 3051CG1A02A1AB1H2L4M5K5, | 3051CD4A02A1AB3H2L4M5I5, |
| 3051CG2A02A1AB1H2L4M5K5, | 3051CD5A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB1H2L4M5K5 | 3051CD1A22A1AB4M5, |
| 3051CG4A02A1AB1H2L4M5K5, | 3051CD2A22A1AB4M5, |
| 3051CG5A02A1AB1H2L4M5K5 | 3051CD3A22A1AB4M5, |
| 3051CG1A02A1AB1H2L4M5E5, | 3051CD4A22A1AB4M5, |
| 3051CG2A02A1AB1H2L4M5E5, | 3051CD5A22A1AB4M5, |
| 3051CG3A02A1AB1H2L4M5E5, | 3051CD1A22A1AB4M5DF, |
| 3051CG4A02A1AB1H2L4M5E5, | 3051CD2A22A1AB4M5DF, |
| 3051CG5A02A1AB1H2L4M5E5, | 3051CD3A22A1AB4M5DF, |
| 3051CG1A02A1AB1H2L4M5I5, | 3051CD4A22A1AB4M5DF, |
| 3051CG2A02A1AB1H2L4M5I5, | 3051CD5A22A1AB4M5DF, |
| 3051CG3A02A1AB1H2L4M5I5, | 3051CD1A22A1AB4M5K5, |
| 3051CG4A02A1AB1H2L4M5I5, | 3051CD2A22A1AB4M5K5, |
| 3051CG5A02A1AB1H2L4M5I5, | 3051CD3A22A1AB4M5K5, |
| 3051CG1A02A1AB3H2L4M5K5, | 3051CD4A22A1AB4M5K5, |
| 3051CG2A02A1AB3H2L4M5K5, | 3051CD5A22A1AB4M5K5, |
| 3051CG3A02A1AB3H2L4M5K5, | 3051CD1A22A1AB4M5E5, |
| 3051CG4A02A1AB3H2L4M5K5, | 3051CD2A22A1AB4M5E5, |
| 3051CG5A02A1AB3H2L4M5K5, | 3051CD3A22A1AB4M5E5, |
| 3051CG1A02A1AB3H2L4M5E5, | 3051CD4A22A1AB4M5E5, |
| 3051CG2A02A1AB3H2L4M5E5, | 3051CD5A22A1AB4M5E5, |
| 3051CG3A02A1AB3H2L4M5E5, | 3051CD1A22A1AB4M5I5, |
| 3051CG4A02A1AB3H2L4M5E5, | 3051CD2A22A1AB4M5I5, |
| 3051CG5A02A1AB3H2L4M5E5, | 3051CD3A22A1AB4M5I5, |
| 3051CG1A02A1AB3H2L4M5I5, | 3051CD4A22A1AB4M5I5, |
| 3051CG2A02A1AB3H2L4M5I5, | 3051CD5A22A1AB4M5I5, |
| 3051CG3A02A1AB3H2L4M5I5, | 3051CA1A02A1AB1H2L4M5, |
| 3051CG4A02A1AB3H2L4M5I5, | 3051CA2A02A1AB1H2L4M5, |
| 3051CG5A02A1AB3H2L4M5I5, | 3051CA3A02A1AB1H2L4M5, |
| 3051CG1A22A1AB4M5, | 3051CA4A02A1AB1H2L4M5, |
| 3051CG2A22A1AB4M5, | 3051CA5A02A1AB1H2L4M5, |
| 3051CG3A22A1AB4M5, | 3051CA1A02A1AB3H2L4M5, |
| 3051CG4A22A1AB4M5, | 3051CA2A02A1AB3H2L4M5, |
| 3051CG5A22A1AB4M5, | 3051CA3A02A1AB3H2L4M5, |
| 3051CG1A22A1AB4M5DF, | 3051CA4A02A1AB3H2L4M5, |
| 3051CG2A22A1AB4M5DF, | 3051CA5A02A1AB3H2L4M5, |
| 3051CG3A22A1AB4M5DF, | 3051CA1A02A1AB1H2L4M5K5, |
| 3051CG4A22A1AB4M5DF, | 3051CA2A02A1AB1H2L4M5K5, |
| 3051CG5A22A1AB4M5DF | 3051CA3A02A1AB1H2L4M5K5, |
| 3051CG1A22A1AB4M5K5, | 3051CA4A02A1AB1H2L4M5K5, |
| 3051CG2A22A1AB4M5K5, | 3051CA5A02A1AB1H2L4M5K5, |
| 3051CG3A22A1AB4M5K5 | 3051CA1A02A1AB1H2L4M5E5, |
| 3051CG4A22A1AB4M5K5, | 3051CA2A02A1AB1H2L4M5E5, |
| 3051CG5A22A1AB4M5K5, | 3051CA3A02A1AB1H2L4M5E5, |
| 3051CG1A22A1AB4M5E5 | 3051CA4A02A1AB1H2L4M5E5, |
| 3051CG2A22A1AB4M5E5, | 3051CA5A02A1AB1H2L4M5E5, |
| 3051CG3A22A1AB4M5E5, | 3051CA1A02A1AB1H2L4M5I5, |
| 3051CG4A22A1AB4M5E5 | 3051CA2A02A1AB1H2L4M5I5, |
| 3051CG5A22A1AB4M5E5, | 3051CA3A02A1AB1H2L4M5I5, |
| 3051CG1A22A1AB4M5I5, | 3051CA4A02A1AB1H2L4M5I5, |
| 3051CG2A22A1AB4M5I5 | 3051CA5A02A1AB1H2L4M5I5, |
| 3051CG3A22A1AB4M5I5, | 3051CA1A02A1AB3H2L4M5K5, |
| 3051CG4A22A1AB4M5I5, | 3051CA2A02A1AB3H2L4M5K5, |
| 3051CG5A22A1AB4M5I5 | 3051CA3A02A1AB3H2L4M5K5, |
| 3051CD0A02A1AB1H2L4M5, | 3051CA4A02A1AB3H2L4M5K5, |
| 3051CD1A02A1AB1H2L4M5, | 3051CA5A02A1AB3H2L4M5K5, |
| 3051CD2A02A1AB1H2L4M5 | 3051CA1A02A1AB3H2L4M5E5, |
| 3051CD3A02A1AB1H2L4M5, | 3051CA2A02A1AB3H2L4M5E5, |
| 3051CD4A02A1AB1H2L4M5, | 3051CA3A02A1AB3H2L4M5E5, |
| 3051CD5A02A1AB1H2L4M5 | 3051CA4A02A1AB3H2L4M5E5, |
| 3051CD0A02A1AB3H2L4M5, | 3051CA5A02A1AB3H2L4M5E5, |
| 3051CD1A02A1AB3H2L4M5, | 3051CA1A02A1AB3H2L4M5I5, |
| 3051CD2A02A1AB3H2L4M5 | 3051CA2A02A1AB3H2L4M5I5, |
| 3051CD3A02A1AB3H2L4M5, | 3051CA3A02A1AB3H2L4M5I5, |
| 3051CD4A02A1AB3H2L4M5, | 3051CA4A02A1AB3H2L4M5I5, |
| 3051CD5A02A1AB3H2L4M5 | 3051CA5A02A1AB3H2L4M5I5, |
| 3051CD0A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5, |
| 3051CD1A02A1AB1H2L4M5K5, | 3051CA2A22A1AB4M5, |
| 3051CD2A02A1AB1H2L4M5K5, | 3051CA3A22A1AB4M5, |
| 3051CD3A02A1AB1H2L4M5K5, | 3051CA4A22A1AB4M5, |
| 3051CD4A02A1AB1H2L4M5K5, | 3051CA5A22A1AB4M5, |
| 3051CD5A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5DF, |
| 3051CD0A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5DF, |
| 3051CD1A02A1AB1H2L4M5E5, | 3051CA3A22A1AB4M5DF, |
| 3051CD2A02A1AB1H2L4M5E5, | 3051CA4A22A1AB4M5DF, |
| 3051CD3A02A1AB1H2L4M5E5, | 3051CA5A22A1AB4M5DF, |
| 3051CD4A02A1AB1H2L4M5E5, | 3051CA1A22A1AB4M5K5, |
| 3051CD5A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5K5, |
| 3051CD0A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5K5, |
| 3051CD1A02A1AB1H2L4M5I5, | 3051CA4A22A1AB4M5K5, |
| 3051CD2A02A1AB1H2L4M5I5, | 3051CA5A22A1AB4M5K5, |
| 3051CD3A02A1AB1H2L4M5I5, | 3051CA1A22A1AB4M5E5, |
| 3051CD4A02A1AB1H2L4M5I5, | 3051CA2A22A1AB4M5E5, |
| 3051CD5A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5E5, |
| 3051CD0A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5E5, |
| 3051CD1A02A1AB3H2L4M5K5, | 3051CA5A22A1AB4M5E5, |
| 3051CD2A02A1AB3H2L4M5K5, | 3051CA1A22A1AB4M5I5, |
| 3051CD3A02A1AB3H2L4M5K5, | 3051CA2A22A1AB4M5I5, |
| 3051CD4A02A1AB3H2L4M5K5, | 3051CA3A22A1AB4M5I5, |
| 3051CD5A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5I5, |
