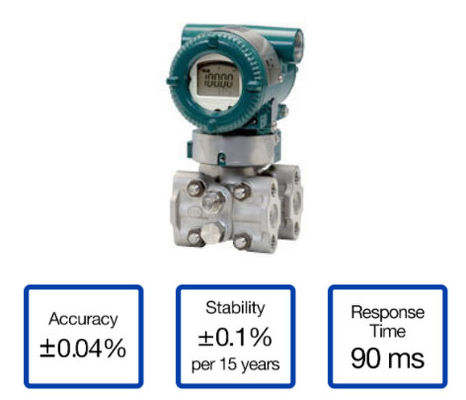

EJX110A-EMS5G-919DB/KS21/D4 EJX110A Differential Pressure Transmitter

EJX110A-EMS5G-919DB/KS21/D4 EJX110A Differential Pressure Transmitter

Description:

Manufacturer : Yokogawa

Product No. : EJX110A-EMS5G-919DB/KS21/D4

Product Type : Differential Pressure Transmitter

Output signal : E = 4 to 20 mA DC with digital communication (HART 5 protocol)

Measurement span (capsule) : M = 0.5 to 100 kPa (2 to 400 inH2O)

Wetted parts material : S = Cover flange and process connector ASTM CF-8M *1, Capsule Hastelloy C-276 *2 (Diaphragm)F316L SST, 316L SST (Others), Capsule gasket Teflon-coated 316L SST, Vent/Drain plug 316 SST

Process connections : 5 = without process connector (1/4 NPT female on the cover flanges)

Bolts and nuts material : G = 316L SST

Installation : 9 = Horizontal piping and left side high pressure

Amplifier housing : 1 = Cast aluminum alloy

Integral indicator : D = Digital indicator

Calibration units : D4 = M calibration (kgf/cm2 unit)

Weight : 2.8 Kg

Shipping Weight : 8 Kg

Additional Informaiton:

The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

The EJX110A is the traditional-mount Differential Pressure Transmitter in the series.

EJX110A features include:

• ± 0.04% Accuracy (0.025% Accuracy option available)
• ± 0.1% per 15 years Stability
• 90 ms Response Time
• 3,600 psi MWP
• Exida and TUV SIL2 / SIL3 Certified
• Local Parameter Setting (LPS)
